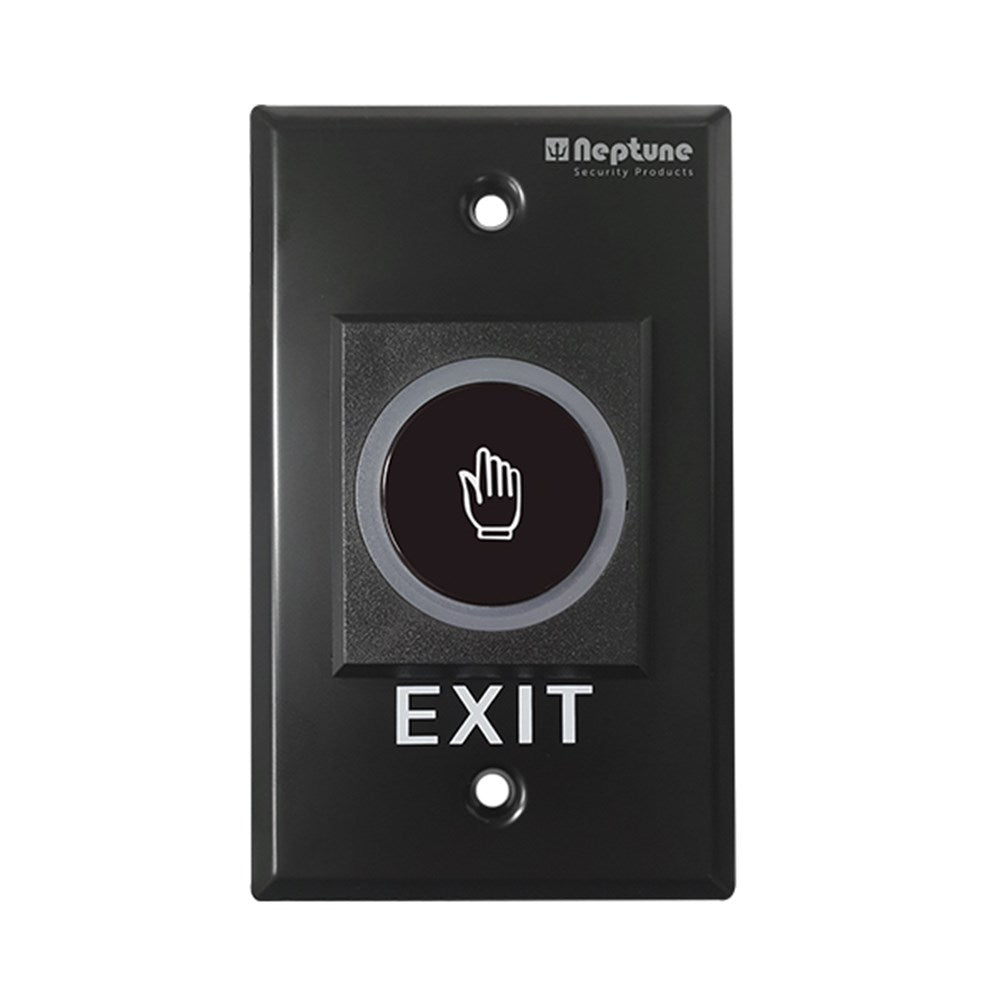

Neptune Touchless Exit 12-24V, ANSI, NO/NC/C, LED 0.7mm SS Black



The Neptune touchless series exit button with an LED indicator ring is ideal for preventing the spread of germs and for use in environments where more sanitary door control solutions are required. This also helps prevent any cross contamination. With an adjustable dection range this exit button is ideal for all applications.


  • Contact rating: 3A/12-24V.
  • Power: 12-24VDC.
  • Output contact: NO/NC/COM.
  • Mechanical life: 500,000 tested.
  • Detection range: 3 – 15cm (adjustable)
  • LED indicator: Blue LED Indicator (Standby).
                           Green LED Indicator (Sensation).
  • Panel: 0.7 mm thick 304 stainless steel.
  • Operating temp: -20℃~ 55℃.
  • Operating humidity: 0-95%(relative humidity).
  • Surface mount: Optional NEASMB metal back box.
  • Installation diameter: 55 mm.
  • Fixing centres: 83 mm.
  • Dimensions: 115 (L) x 70 (W) x 30 mm (D).
  • Weight: 0.11kg.
