LockwoodSKU: 530DXSC

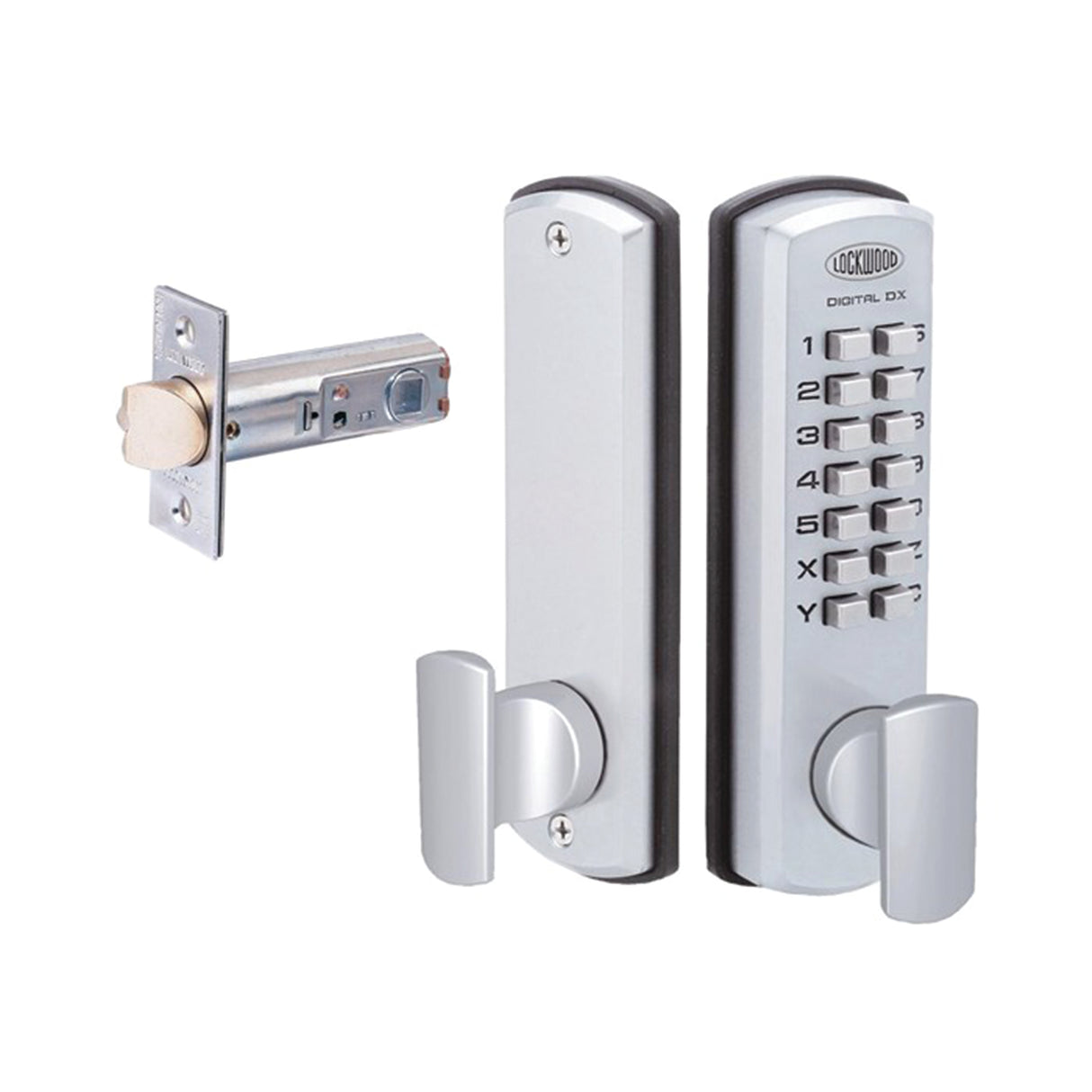

Lockwood 530 Digital Lockset, 60Mm Backset



The Lockwood Digital DX Locksets provide a mechanical method of keyless entry.

For extra security when under forced attack, the inbuilt clutching mechanism allows the outside knob to rotate without operating or damaging the lock.

The factory set 5 digit code is easily changed to any 4, 5 or 6 digit code using the code changing kit provided with each lock.

Lockwood Digital DX Locksets are designed to control access into commercial areas, especially when frequent combination changes are needed to maintain security.

As the digital lockset utilizes mechanical operation, electrical wiring is not required. Selected locksets combined with digital access pads provide keyless entry.


Mechanical digital lock – No batteries or wiring
Outside: Press the C button, enter the correct code, then turn the knob to unlock the door. Upon releasing the turn knob the code is automatically cancelled.
Inside: Opened by knob at all times
Suitable for doors 35mm to 45mm thick.
60mm backset (70 and 127mm latches available)
Options: Also available in double keypad version, which provides a keypad on each side of the door.
Finishes Satin Chrome Pearl SP
Fire Rating

Lockwood 530 Digital DX Entrance Set (excluding rubber gasket) has been successfully tested to 2 hours on fire door assemblies in accordance with Australian Standard AS 1905.1: 1997, Fire Resistant Doorsets.
