Description
Style and versatility are combined in this range which comprises four architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application.
Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice.

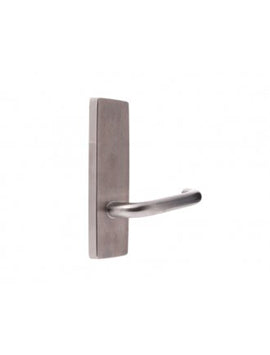

The Lockwood 1800 series square plate door furniture is designed for use as lock furniture with Lockwood 3570 series and A5250 tubular latches.
The 1800 series is the external plate, for the internal plate see the 1900 series.
Features:
Rectangular exterior square end plate.
Plain plate and 70 series lever
Concealed fixing.
Plate size 166mm x 48mm x 12mm.
Plates are designed to fit back to back.
Suits door thickness from 32mm to 50mm.
External plates supplied with fixing screws.
Screw fixing centres 148mm.
Fire rated.
Successfully tested to exceed the highest durability rating (D8, 500,000 cycles) under the Australian Standard (AS4145.2: 2008).
Finished in satin chrome.
For more detailed information please check the catalogue below.
