Cyberlock Multi-Drawer Lock IC Housing



The CL Multi-Drawer Locks are a range of pedestal or drawer locking products that primarily lock and allow access to opening just one drawer at a time. They are available as a side fixed mount or front fixed mount. There are model options to suit a traditional office metal filing cabinet and another ideally made to suit more residential timber cabinets.

Side mounted multi drawer locks are used where there is limited height available for a front mounted lock to be installed. The front mounted multi drawer locks can be fitted in a fixed pelmet or in the drawer front with the choice of 90 degree or 180 degree movement, depending on the application. Both the side and front drawer locks are made from zinc alloy die cast that is designed to last.

  • The system offers two groups of 650 keyed to differ CC and CD standard barrels
  • Also available in a high security dimple key series with up to 800 key differs
  • Both CC and CD groups are operated by a grand master key and removal key
  • Master and removal key available
  • Barrels must be ordered separately
  • 18mm cylinder diameter with a 22mm projection
  • CL lock range is made of diecast zinc
  • This lock range has an interchangeable barrel system
  • All lock housings are supplied with a bezel as standard
  • Key blanks available KBMT
  • Nickel Silver

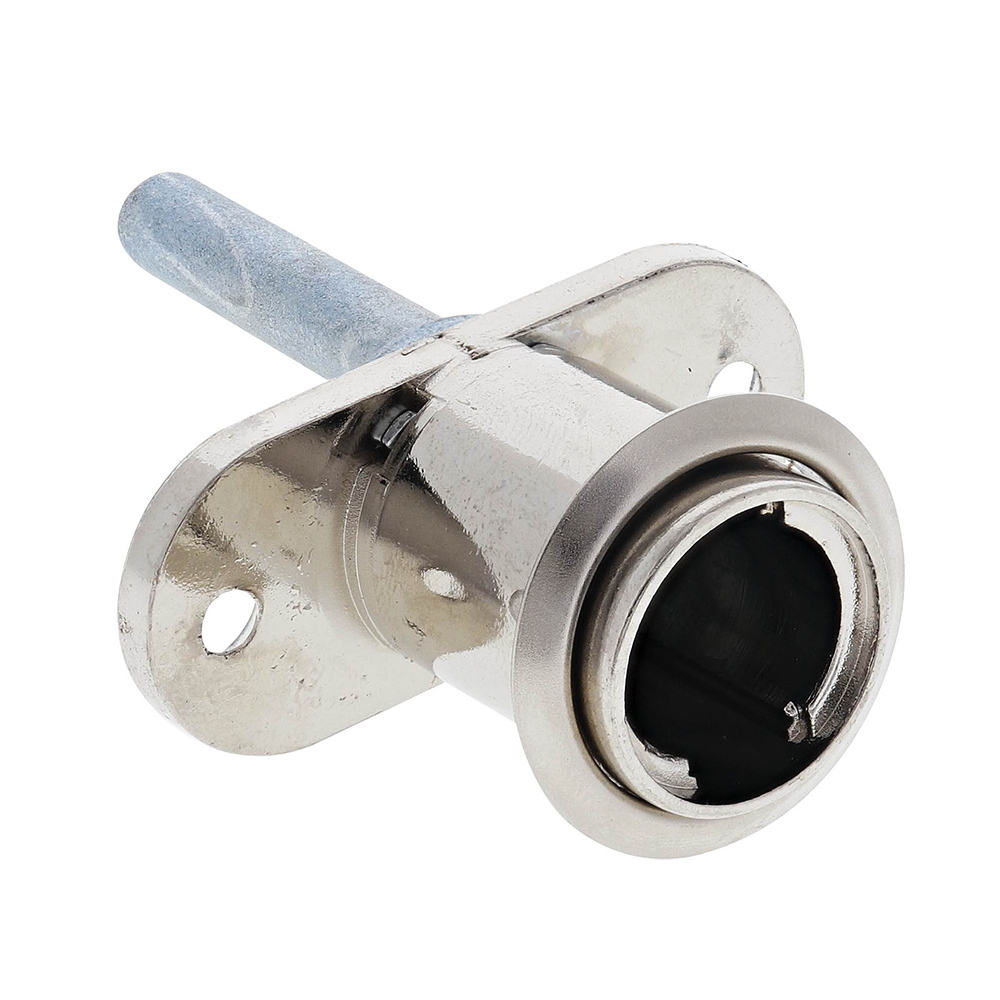

  • A-603-22-01 double flange 180 degree lock has 17mm lock throw from top to bottom, 12-6 movement
  • Locking bars and accessories are available
