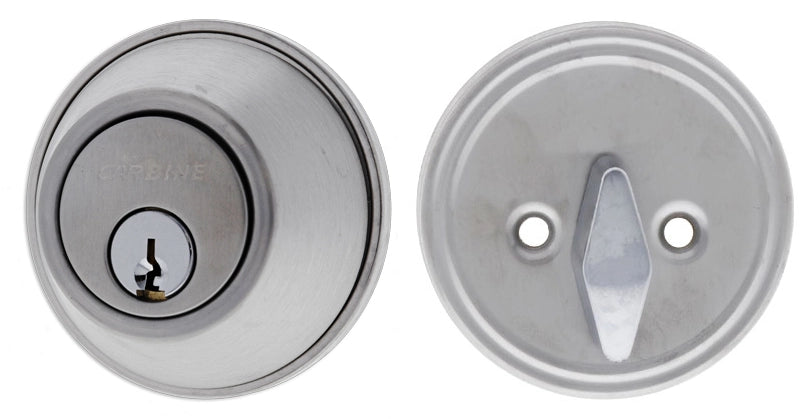

CarbineSKU: ALB4010A

Carbine ALB Series Deadbolts


Keying: Single With Turn
Finish: Stainless Steel


The Carbine commercial grade of Advanced Locking Bolt (ALB) surface mounted deadbolts provides installers and users the strength, versatility, and various finishes to suit both function and style.

  • Concealed fixing allen key screws for extra security
  • Removable brass 6 pin PD style cylinder (keyed to a 5 pin key)
  • Suits Keyline LKW9 (Silca LW5) profile
  • Special model available with a 5 pin TES5 keyway cylinder (compatible with Gainsborough keys)
  • Fully rekeyable to either simple keying alike or master keying
  • Able to accept a wide range of restricted barrels
  • Bolt is brass and has an anti-saw hardened steel pin in the centre for higher security
  • Has a rose diameter of 65mm without the rosette or 70mm with the rosette supplied
  • Made to fit doors with a thickness between 35mm – 45mm
  • Can be purchased with a either a 60mm, 70mm or an adjustable 60-70mm backset. 127mm backset bolts are available as spare parts
  • Supplied with two spacing rings per lock to accommodate thinner doors (between 35mm-53mm)
