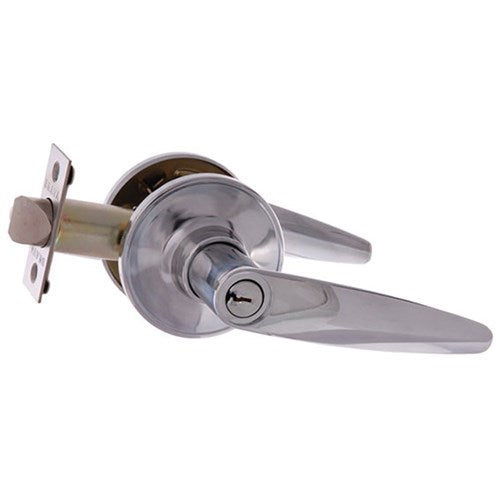

Brava Urban LH Series Leversets

Brava  |  SKU: LH600B
$69.24
Tax included Shipping calculated at checkout.
Finish
Function

Delivery

Online orders are confirmed with a shipping quote (Australia Post / courier) before postage is finalised — we don’t show live stock on the site. Availability and dispatch timing are confirmed in that quote. Call (08) 9227 7727 if you need help. Click and collect from Leederville or Wangara after we confirm the item is ready. Heavy items and safes are freight-quoted separately.

Brava Urban LH Series Leversets

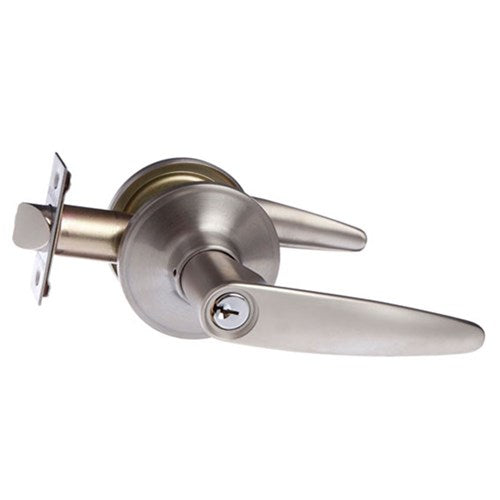

BRAVA Urban LH series entrance leverset. Domestic grade entrance leverset.

Entrance function

  • Key outside locks and unlocks both levers.
  • Turnsnib inside, locks and unlocks both levers.

Additional info

Tiebolt fixing.

Silca LW4 profile.(Rekeyable to 6 pin LW5)

Construction keyable on all chambers.(Using BRUCKBALL)

Straight lever design.

2 keys supplied.

Finished in satin stainless steel.

Supplied boxed (and colour coded) with mounting hardware.

Door thickness 35-51 mm
Backset adjustable 60/70 mm
max. Lever / knob projection
distance may not include turnsnib 		62 mm
Strike 70 mm x 27 mm x 1.2 mm
Latch adjustable 60/70 mm
Latch face plate 57 mm x 25 mm
Cylinder LW4 profile
Door handing Non-handed levers
Rose 66.5 mm
Technical Specifications
Brand BRAVA
Display Pack No
Door Thickness 35-51 mm
Finish

Satin Stainless Steel

Polished Brass

Chrome Plate
Function (FUNCTION) Entrance
Lever Shape Straight
Lock Grade Domestic
Lock Type Tiebolt
Rose Diameter 66.5
Backset (BACKSET) 60/70 mm
Key Profile (KEYPROFILE) LW4
NZ Part Code LH600B
