Kaba ED22DP Series Exit Devices

Kaba  |  SKU: BOED22DPEOSIL
$1,794.02
Tax included
Fire Rated

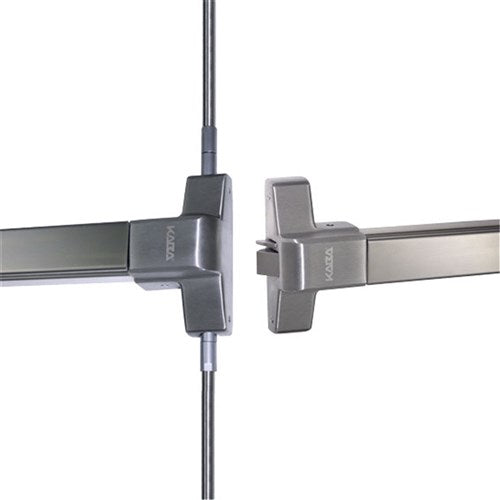

Kaba ED22DP Series Exit Devices

The Kaba ED22DP series Exit Only double pack panic exit devices are designed to provide emergency egress by a single action pushing motion via a modern design touch pad, fitted horizontally across the doors.

The ED22DP provides secure locking in double door applications and offers latch hold back (dogging) options, external trim options for lever/knob and is suitable for double metal or timber doors.

ED22

  • Horizontal fitting with single point locking.
  • Supplied in 1085 mm standard length.
    Can be field sized to 645 mm minimum length.
  • Suits door thickness 35 - 50 mm as standard.
  • Latch-bolt is dead-latching.
  • Field selectable handing.
  • Hex key dogging.
  • Finished in silver.

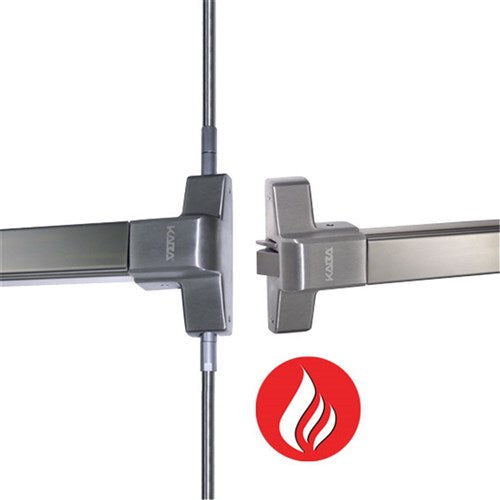

ED2227

  • Horizontal fitting with 2 point vertical locking.
  • Supplied in 1085 mm standard length.
    Can be field sized to 645 mm minimum length.
  • Suits door thickness 35 - 50 mm as standard.
  • Latch-bolt is dead-latching.
  • Suits up to 2100 mm high doors.
    Extension rods available in 600 mm lengths.
  • Field selectable handing.
  • Hex key dogging.
  • Finished in silver.
